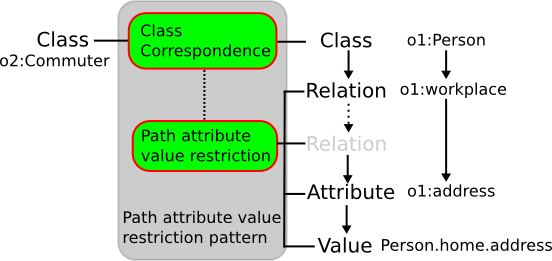

Graphical representation

Diagram

General information

Name	Class by path attribute value
Also known as
Author(s)	Francois Scharffe
SubmittedBy	FrancoisScharffe

Description

Domain (if applicable)	General
Alignment problem addressed	A class in one ontology is aligned to a class in another ontology and the criteria for membership in the class are specified by an attribute value at the end of a path.
Alignment solution	The two classes in two ontologies are provided along with a statement involving either one class or both classes. This statement is a precondition for the correspondence. This pattern is agnostic to whether the correspondence is unidirectional or bidirectional. However, if the correspondence is bidirectional (equivalence relation), the same precondition applies for both directions.
Alignment workflow
Reusable component

Example

Problem example

Solution example

Example correspondence:

<Cell>
 <entity1>
  <Class>
   <and>
    <Class rdf:about="o1 :Person"/>
    <AttributeValueCondition>
     <onAttribute>
      <Property>
       <first>
        <Relation rdf:about="o1 :workplace"/>
       </first>
       <next>
        <Property>
         <first>
          <Relation rdf:about="o1 :address"/>
         </first>
         <next>
          <Property rdf:about="o1 :city"/></next>
         </next>
        </Property>
       </next>
      </Property>
     </onAttribute>
     <comparator rdf:resource="xsd:not-equal"/>
     <value>
      <Property>
       <first>
        <Relation rdf:about="o1 :address"/>
       </first>
       <next>
        <Property rdf:about="o1 :city"/>
       </next>
      </Property>
     </value>
    </AttributeValueCondition>
   </and>
  </Class>
 </entity1>
 <entity2>
  <Class rdf:about="o2 :Commuter">
 </entity2>
</Cell>

Consequences

Reference

Origin
Known use
Reference
Related to
Test

Scenarios

Scenarios about Class by path attribute value

No scenario is added to this Content OP.

Reviews

Reviews about Class by path attribute value

There is no review about this proposal.

Some subquery has no valid condition.

This revision (revision ID 8500) takes in account the reviews: none

Other info at evaluation tab

Modeling issues

Modeling issues about Class by path attribute value

There is no Modeling issue related to this proposal.
