Last modified date is: 2016-07-19

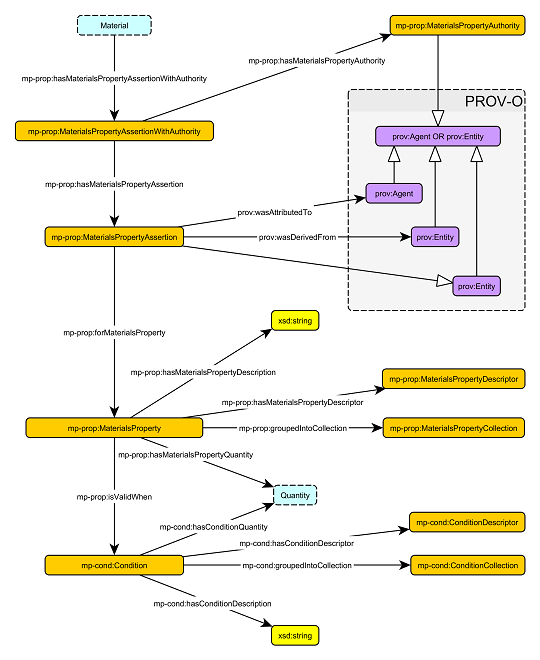

Graphical representation

Diagram

General description

Name:	MaterialsProperty
Submitted by:	CoganShimizu
Also Known As:
Intent:	To capture the provenance an assertion about a material's properties as well as capture the particulars of the property itself.
Domains:	Materials Science, Manufacturing
Competency Questions:	What is the temperature range where an ultimate tensile strength of x is valid for material y? What materials give off a faint odor of burnt hair during a burn test? Who established values in the range of x to y as the plane-strain fracture toughness for material z? What plate materials have a crack growth rate less than x in air for a stress intensity range greater than y a stress ratio of 0.3 and a crack plane orientation of L-T?
Solution description:	This pattern provides an extensible and modular content ontology design pattern that captures materials properties, the governing conditions, and the asserting authority.
Reusable OWL Building Block:	1 (0)
Consequences:
Scenarios:
Known Uses:
Web References:
Other References:
Examples (OWL files):
Extracted From:
Reengineered From:
Has Components:
Specialization Of:
Related CPs:

The MaterialsProperty Content OP locally defines the following ontology elements:

Scenarios about MaterialsProperty

No scenario is added to this Content OP.

Reviews about MaterialsProperty

There is no review about this proposal.

Some subquery has no valid condition.

This revision (revision ID 12802) takes in account the reviews: none

Modeling issues about MaterialsProperty

There is no Modeling issue related to this proposal.

Some subquery has no valid condition.
