This pattern has been certified.

Related submission, with evaluation history, can be found here

Working.gif Last modified date is: 2017-01-24

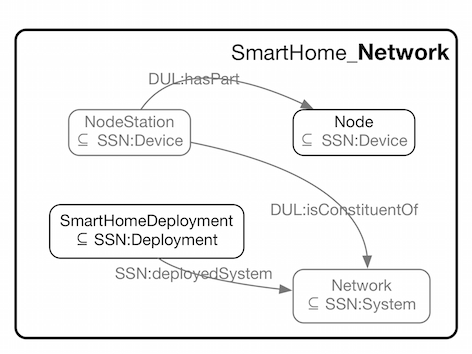

Graphical representation

Diagram


General description

Name: SmartHome_Network
Submitted by: MarjanAlirezaie
Also Known As:
Intent: This pattern relies on both the SSN ontology and DUL in order to represent sensors and other techniqually needed objects to deploy a network in a smart home environment.

The concept of Network is modeled in this pattern as a System (http://purl.oclc.org/NET/ssnx/ssn#System) whose constituents are NodeStations (subclass of Node which is in turn subsumed by the class http://purl.oclc.org/NET/ssnx/ssn#Device). Another subsumee of the Device class is the class Node describing more details about the content of each node station. Depending on their roles, nodes of a network are devided into types of node senders (whcih observe a phenomenon and send the data) and receivers (which receive the observation data).

Domains:
Competency Questions:
Solution description: TBD
Reusable OWL Building Block: 1 (312)
Consequences:
Scenarios:
Known Uses:
Web References:
Other References:
Examples (OWL files):
Extracted From:
Reengineered From:
Has Components:
Specialization Of:
Related CPs:



Elements

The SmartHome Network Content OP locally defines the following ontology elements:

ObjectProperty receivesDataFrom (owl:ObjectProperty)
ArrowRight.gif receivesDataFrom page
ObjectProperty sendsDataTo (owl:ObjectProperty)
ArrowRight.gif sendsDataTo page
Class DataReceiverNode (owl:Class)
ArrowRight.gif DataReceiverNode page
Class DataSenderNode (owl:Class)
ArrowRight.gif DataSenderNode page
Class Network (owl:Class) A network which is a collection of Nodes
ArrowRight.gif Network page
Class Node (owl:Class)
ArrowRight.gif Node page
Class NodeStation (owl:Class)
ArrowRight.gif NodeStation page
Class ReceiverNodeStation (owl:Class)
ArrowRight.gif ReceiverNodeStation page
Class SenderNodeStation (owl:Class)
ArrowRight.gif SenderNodeStation page
Class SmartHomeDeployment (owl:Class)
ArrowRight.gif SmartHomeDeployment page

Additional information

Scenarios

Scenarios about SmartHome Network

No scenario is added to this Content OP.

Reviews

Reviews about SmartHome Network
There is no review about this proposal.
Some subquery has no valid condition.

This revision (revision ID 13121) takes in account the reviews: none

Other info at evaluation tab


Modeling issues

Modeling issues about SmartHome Network
There is no Modeling issue related to this proposal.
Some subquery has no valid condition.
