Last modified date is: 2010-03-08

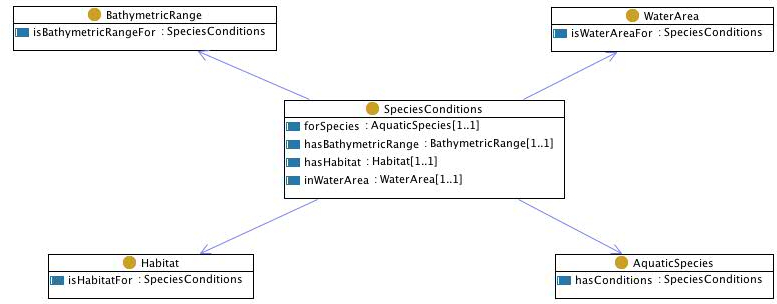

Graphical representation

Diagram

General description

Name:	SpeciesConditions
Submitted by:	AldoGangemi
Also Known As:
Intent:	This pattern aims at representing the habitat and bathymetric features that are typical for an aquatic species, in the context of a given water area.
Domains:
Competency Questions:	what are the typical living conditions of a certain aquatic species? what are the aquatic species that live in a certain habitat/bathymetric range for that water area?
Solution description:	-
Reusable OWL Building Block:	1 (423)
Consequences:	This pattern allows to represent the contextualized features of an aquatic species. For simpler representation of those features (non-contextualized to a water area), use specieshabitat.owl and speciesbathymetry.owl.
Scenarios:	give me the species found below 200 metres for water area '24'; give me the species having a 'demersal' habitat in water area '24'
Known Uses:
Web References:
Other References:
Examples (OWL files):
Extracted From:
Reengineered From:
Has Components:
Specialization Of:
Related CPs:	Submissions:SpeciesHabitat

Elements

The SpeciesConditions Content OP locally defines the following ontology elements:

Habitat (owl:Class) Habitat is the biological and ecological context of a species in the area of an aquatic resource.

Habitat page

SpeciesConditions (owl:Class) A class that allows to represent the typical physic conditions (bathymetry, habitat) of an aquatic species for a certain water area.

SpeciesConditions page

AquaticSpecies (owl:Class) Aquatic species is characterized together with resources and water areas.

Mappable to fi:Species, fi:SpeciesRef, fi:SpeciesFeature, etc.

It has related axioms from FIGIS Schema that are included in the classes linked to the fi:Species class, such as fi:SpeciesRef (holding association with fi:AqResRef, which holds association with fi:WaterAreaRef).

AquaticSpecies page

BathymetricRange (owl:Class) This class contains the set of bathymetric ranges. Bathymetry is numeric depth information about the ranges in which an aquatic species is found.

It can be mapped to fi:Bathymetry.

BathymetricRange page

WaterArea (owl:Class)

WaterArea page

hasHabitat (owl:ObjectProperty)

hasHabitat page

inWaterArea (owl:ObjectProperty)

inWaterArea page

hasBathymetricRange (owl:ObjectProperty)

hasBathymetricRange page

forSpecies (owl:ObjectProperty)

forSpecies page

hasConditions (owl:ObjectProperty)

hasConditions page

isWaterAreaFor (owl:ObjectProperty)

isWaterAreaFor page

isHabitatFor (owl:ObjectProperty)

isHabitatFor page

isBathymetricRangeFor (owl:ObjectProperty)

isBathymetricRangeFor page

Additional information

A pattern, based on situation.owl, which allow to express the typical 'conditions' (habitat, bathymetric range) of a species for a certain water area.

(type): http://www.w3.org/2002/07/owl#Ontology

(imports): http://www.ontologydesignpatterns.org/cp/owl/situation.owl

(versionInfo): 1.0

(comment): A pattern, based on situation.owl, which allow to express the typical 'conditions' (habitat, bathymetric range) of a species for a certain water area.

(imports): http://www.ontologydesignpatterns.org/schemas/cpannotationschema.owl

Scenarios

Scenarios about SpeciesConditions

No scenario is added to this Content OP.

Reviews

Reviews about SpeciesConditions

There is no review about this proposal.

Some subquery has no valid condition.

This revision (revision ID 9124) takes in account the reviews: none

Other info at evaluation tab

Modeling issues

Modeling issues about SpeciesConditions

There is no Modeling issue related to this proposal.
