Last modified date is: 2010-03-08

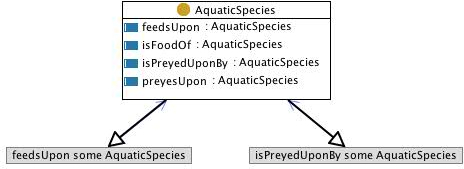

Graphical representation

Diagram

General description

Name:	SpeciesEat
Submitted by:	EvaBlomqvist
Also Known As:
Intent:	The pattern intends to model the situation that a certain species feed upon other species and that some species are preyed upon by a certain species.
Domains:
Competency Questions:	What species feed upon a certain species? What species are eaten by a certain species? What species is preyed upon by a certain species? What species preyes upon a certain species?
Solution description:	...
Reusable OWL Building Block:	1 (429)
Consequences:
Scenarios:	What species eat 'shrimp'; What species are eaten by 'seals'
Known Uses:
Web References:
Other References:
Examples (OWL files):
Extracted From:
Reengineered From:
Has Components:
Specialization Of:
Related CPs:

Elements

The SpeciesEat Content OP locally defines the following ontology elements:

AquaticSpecies (owl:Class) Aquatic species are conceptual entities that are characterized together with resources and water areas.

Mappable to fi:Species, fi:SpeciesRef, fi:SpeciesFeature, etc.

It has related axioms from FIGIS Schema that are included in the classes linked to the fi:Species class, such as fi:SpeciesRef (holding association with fi:AqResRef, which holds association with fi:WaterAreaRef).

AquaticSpecies page

feedsUpon (owl:ObjectProperty)

feedsUpon page

isPreyedUponBy (owl:ObjectProperty)

isPreyedUponBy page

isFoodOf (owl:ObjectProperty)

isFoodOf page

preyesUpon (owl:ObjectProperty)

preyesUpon page

Additional information

(type): http://www.w3.org/2002/07/owl#Ontology

(imports): http://www.ontologydesignpatterns.org/schemas/cpannotationschema.owl

(hasUnitTest): SELECT ?x WHERE {?x a :AquaticSpecies. ?x :feedsUpon :Shrimp. } SELECT ?x WHERE {?x a :AquaticSpecies. :Shrimp :isEatenBy ?x. } SELECT ?x WHERE {?x a :AquaticSpecies. ?x :isPreyedUponBy :Seals.} SELECT ?x WHERE {?x a :AquaticSpecies. :Seals :preyesUpon ?x.}

Scenarios

Scenarios about SpeciesEat

No scenario is added to this Content OP.

Reviews

Reviews about SpeciesEat

There is no review about this proposal.

Some subquery has no valid condition.

This revision (revision ID 9126) takes in account the reviews: none

Other info at evaluation tab

Modeling issues

Modeling issues about SpeciesEat

There is no Modeling issue related to this proposal.
