Last modified date is: 2010-03-08

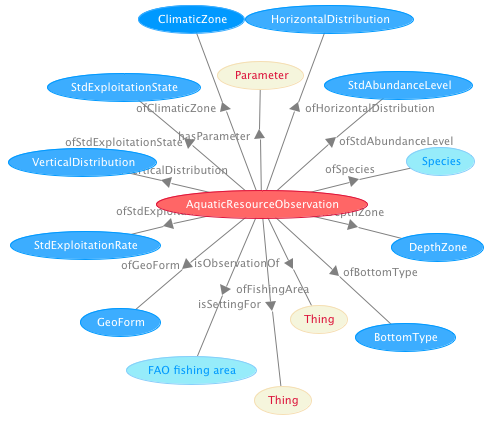

Graphical representation

Diagram

General description

Name:	AquaticResourceObservation
Submitted by:	AldoGangemi
Also Known As:
Intent:	To represent the aquatic observation data extracted from factsheet application. An aquatic observation refers to a specific year, is about an aquatic resource, and is situated in a given habitat, in which the aquatic species from the resource live. Observations can have a reporting year that is different from the observation time.
Domains:	Fishery
Competency Questions:	For an aquatic resource what species in what fishing areas climatic zones bottom types depth zones geo forms horizontal and vertical distribution and for what standardized abundance level exploitation state and rate have been observed? for what reference year? At what year the observation has been recorded?
Solution description:	This pattern specializes the observation pattern in order to represent situations of aquatic resource features, which contain parameters, time, place, etc. A peculiar difference is the use of two temporal indexes: reference and reporting times. The first is the time, at which the situation represented occurred; the second is the time, at which the observation has been reported.
Reusable OWL Building Block:	1 (494)
Consequences:	We are able to query and reason on the data extracted from the FactSheets XML database, concerning the observation of aquatic resources. There are more data in that database, however.
Scenarios:	The aquatic resource for Skipjack tuna in Northern Atlantic in 2004 (as reported in 2008) was observed with low abundance level.
Known Uses:
Web References:
Other References:
Examples (OWL files):
Extracted From:
Reengineered From:
Has Components:	Submissions:SpeciesFactsheets Submissions:WaterAreasFactsheets
Specialization Of:	Submissions:Observation
Related CPs:	Submissions:CatchRecord

Elements

The AquaticResourceObservation Content OP locally defines the following ontology elements:

bottomTypeOfObservation (owl:ObjectProperty)

bottomTypeOfObservation page

climaticZoneOfObservation (owl:ObjectProperty)

climaticZoneOfObservation page

depthZoneOfObservation (owl:ObjectProperty)

depthZoneOfObservation page

fishingAreaOfObservation (owl:ObjectProperty)

fishingAreaOfObservation page

geoFormOfObservation (owl:ObjectProperty)

geoFormOfObservation page

horizontalDistributionOfObservation (owl:ObjectProperty)

horizontalDistributionOfObservation page

ofBottomType (owl:ObjectProperty)

ofBottomType page

ofClimaticZone (owl:ObjectProperty)

ofClimaticZone page

ofDepthZone (owl:ObjectProperty)

ofDepthZone page

ofFishingArea (owl:ObjectProperty)

ofFishingArea page

ofGeoForm (owl:ObjectProperty)

ofGeoForm page

ofHorizontalDistribution (owl:ObjectProperty)

ofHorizontalDistribution page

ofSpecies (owl:ObjectProperty)

ofSpecies page

ofStdAbundanceLevel (owl:ObjectProperty)

ofStdAbundanceLevel page

ofStdExploitationRate (owl:ObjectProperty)

ofStdExploitationRate page

ofStdExploitationState (owl:ObjectProperty)

ofStdExploitationState page

ofVerticalDistribution (owl:ObjectProperty)

ofVerticalDistribution page

speciesFromObservation (owl:ObjectProperty)

speciesFromObservation page

stdAbundanceLevelOfObservation (owl:ObjectProperty)

stdAbundanceLevelOfObservation page

stdExploitationRateOfObservation (owl:ObjectProperty)

stdExploitationRateOfObservation page

stdExploitationStateOfObservation (owl:ObjectProperty)

stdExploitationStateOfObservation page

verticalDistributionOfObservation (owl:ObjectProperty)

verticalDistributionOfObservation page

forReferenceYear (owl:DatatypeProperty)

forReferenceYear page

hasReportingYear (owl:DatatypeProperty)

hasReportingYear page

AquaticResource (owl:Class) An aquatic resource.

AquaticResource page

AquaticResourceObservation (owl:Class) An observation singled out of reported data, once a year, about an aquatic resource.

AquaticResourceObservation page

BottomType (owl:Class)

BottomType page

ClimaticZone (owl:Class)

ClimaticZone page

DepthZone (owl:Class)

DepthZone page

GeoForm (owl:Class)

GeoForm page

HorizontalDistribution (owl:Class)

HorizontalDistribution page

StdAbundanceLevel (owl:Class)

StdAbundanceLevel page

StdExploitationRate (owl:Class)

StdExploitationRate page

StdExploitationState (owl:Class)

StdExploitationState page

VerticalDistribution (owl:Class)

VerticalDistribution page

Additional information

An ontology that represents the semantics of a database view about aquatic resources and their related data

Scenarios

Scenarios about AquaticResourceObservation

No scenario is added to this Content OP.

Reviews

Reviews about AquaticResourceObservation

There is no review about this proposal.

Some subquery has no valid condition.

This revision (revision ID 9064) takes in account the reviews: none

Other info at evaluation tab

Modeling issues

Modeling issues about AquaticResourceObservation

There is no Modeling issue related to this proposal.
